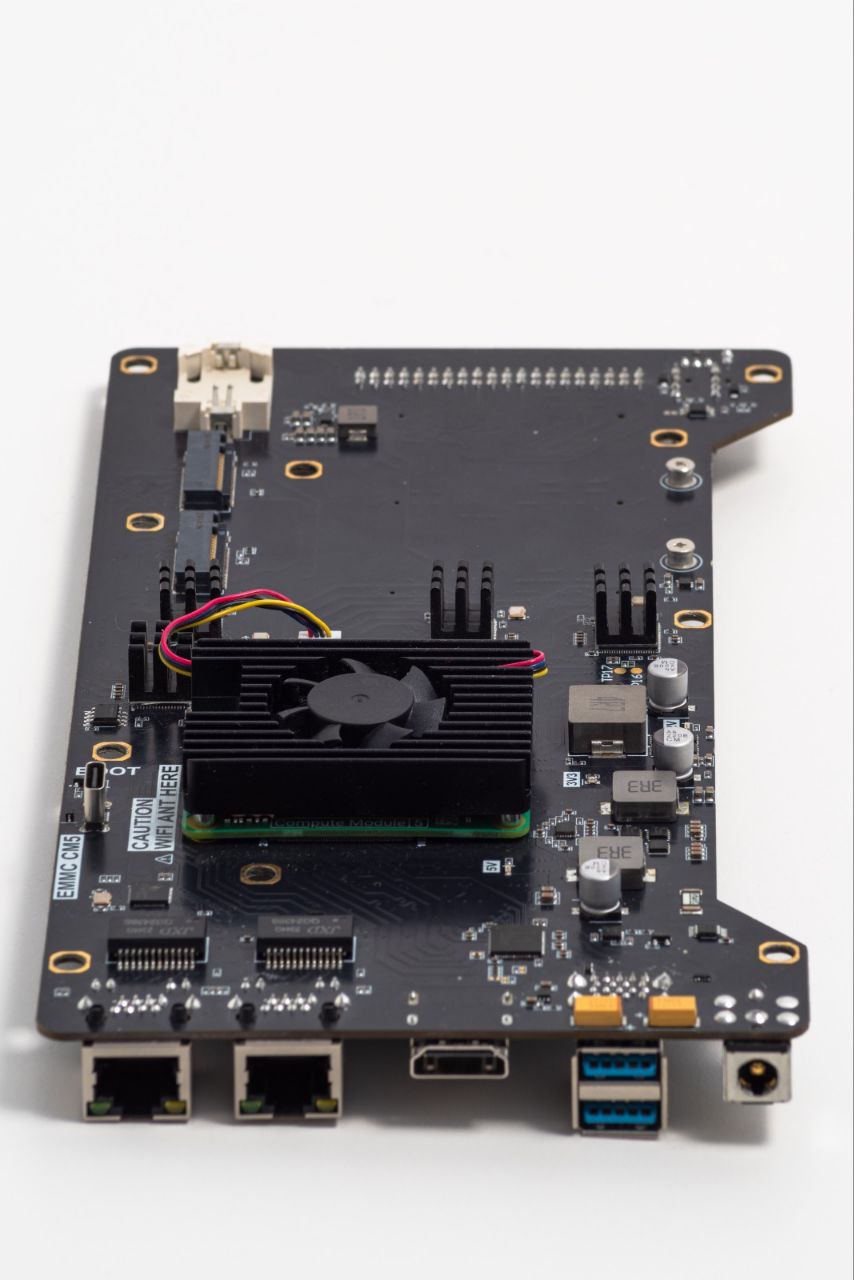

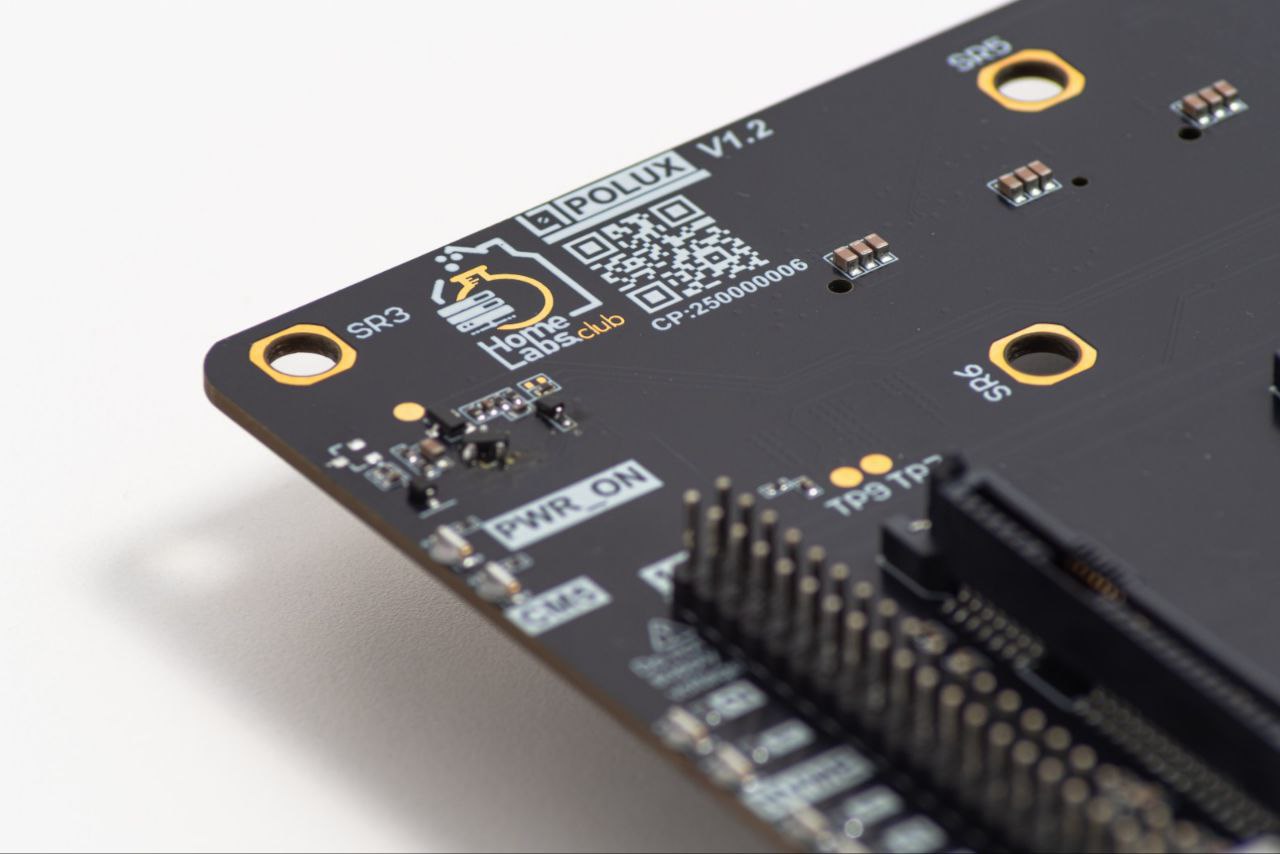

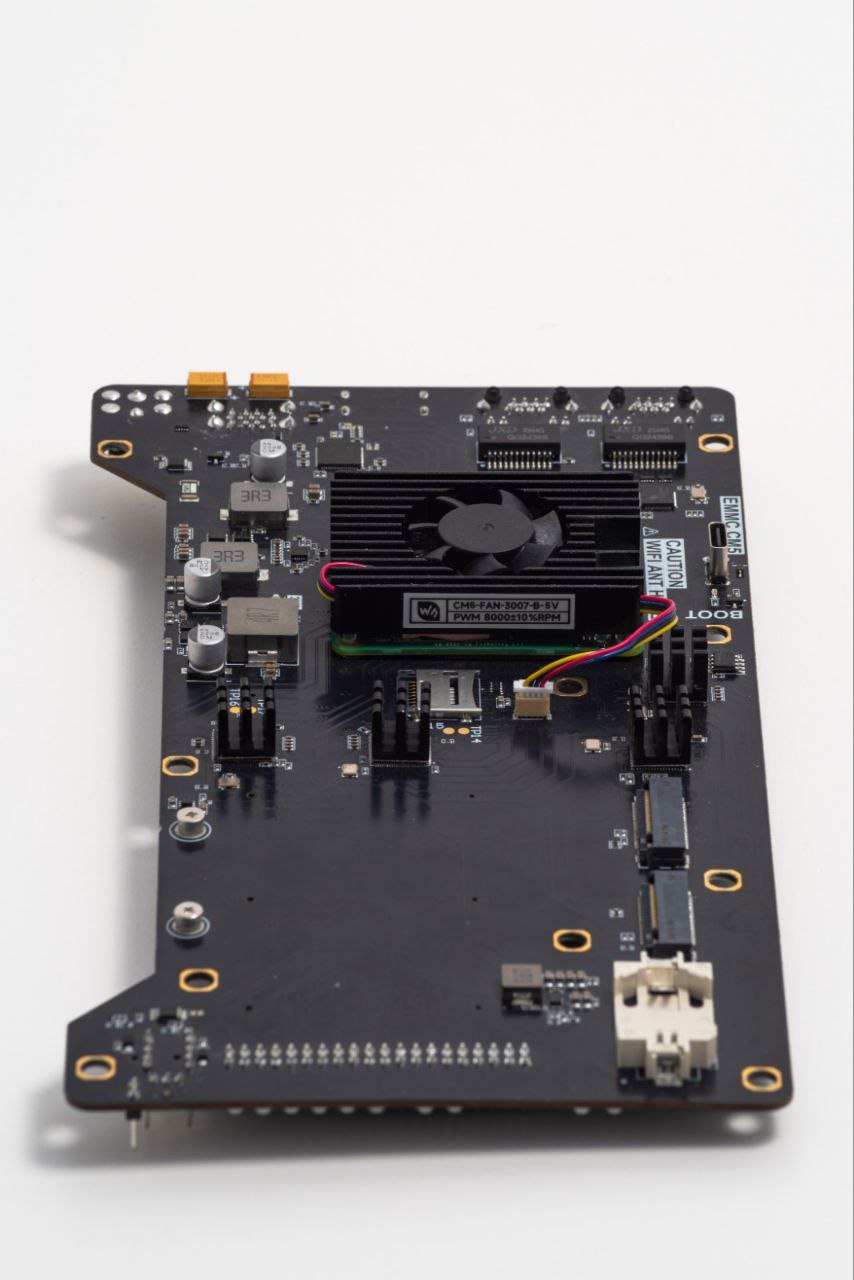

Features

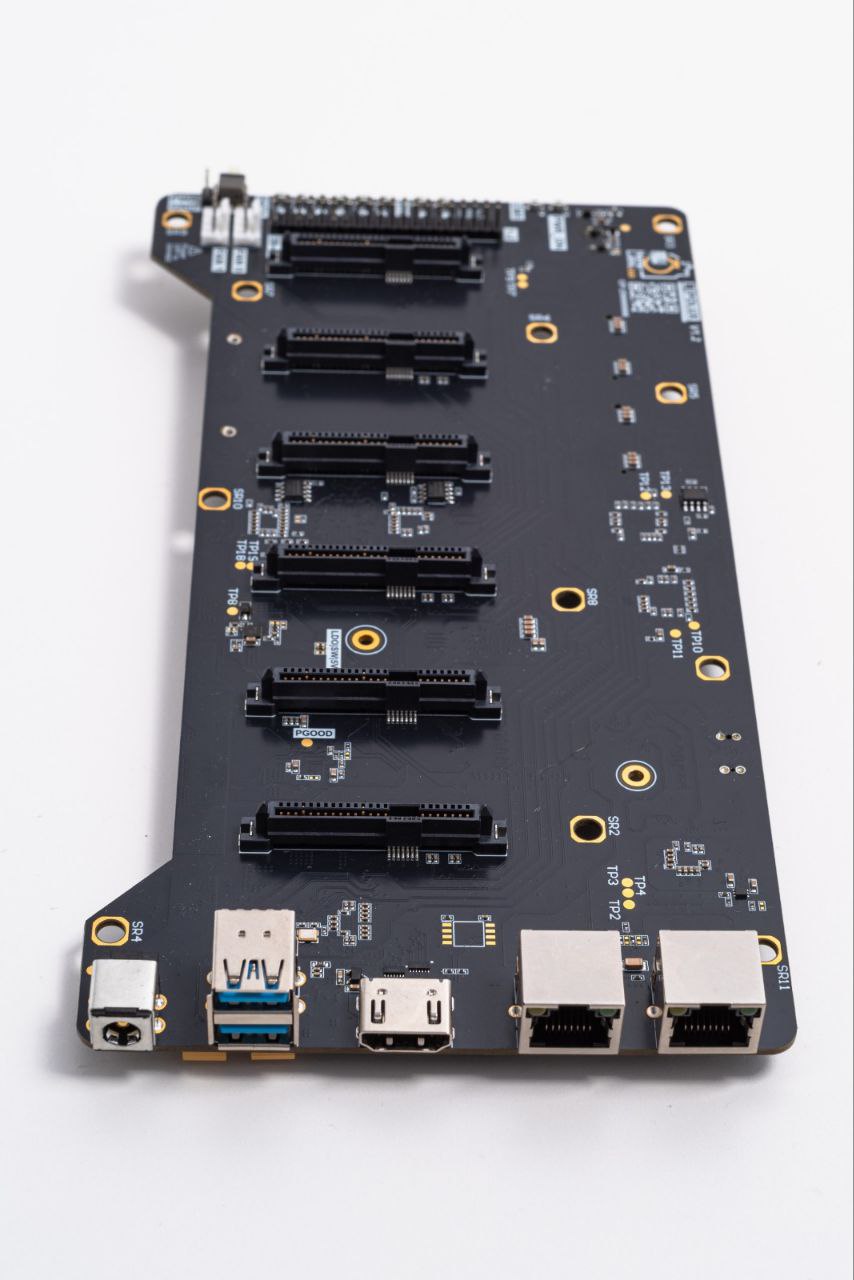

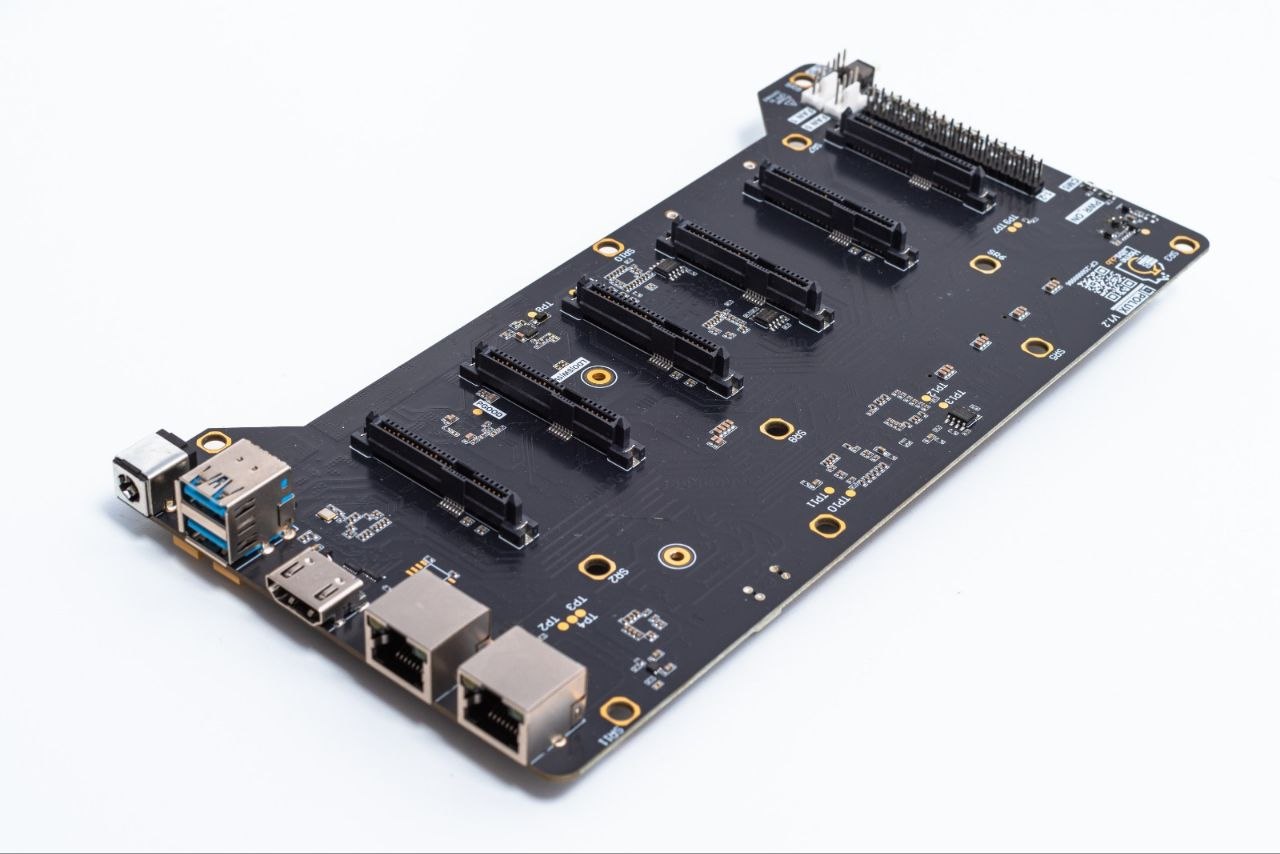

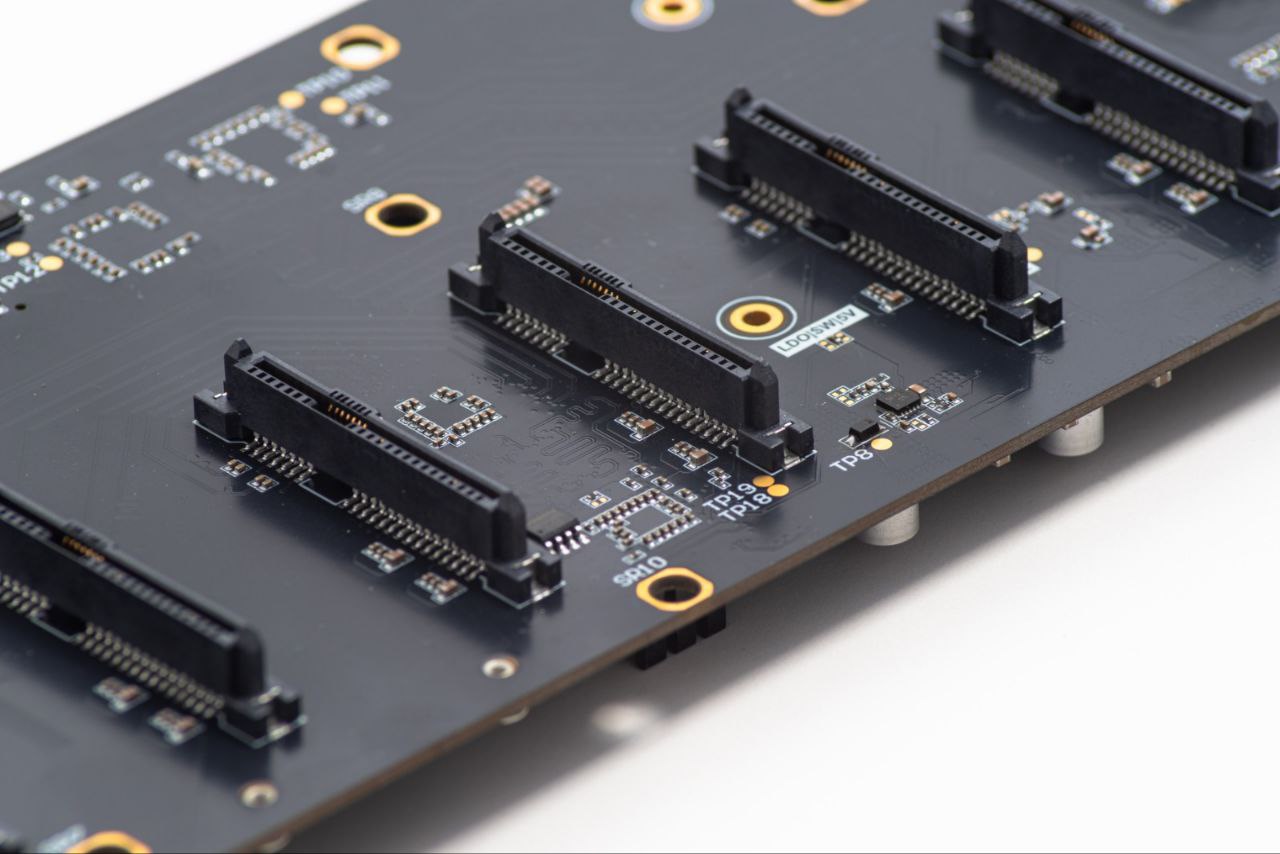

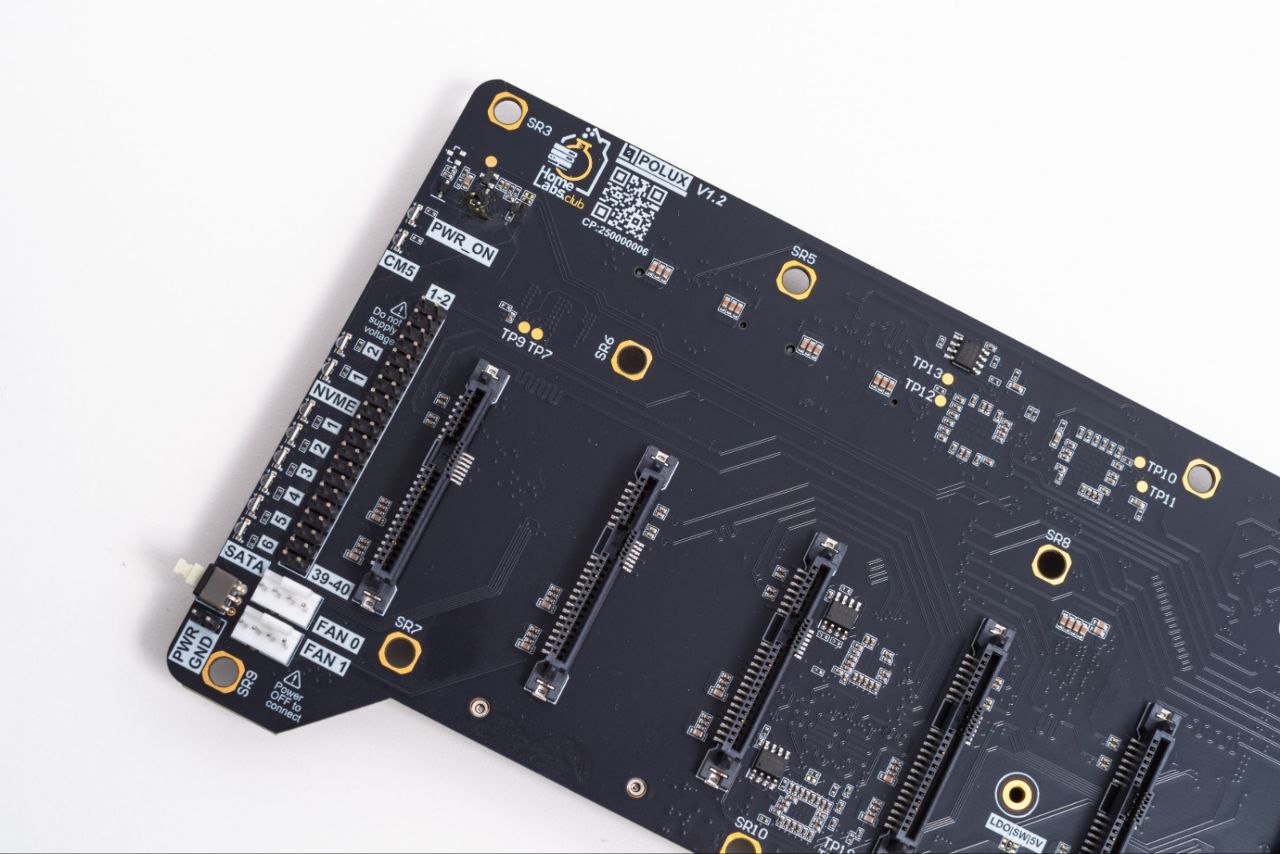

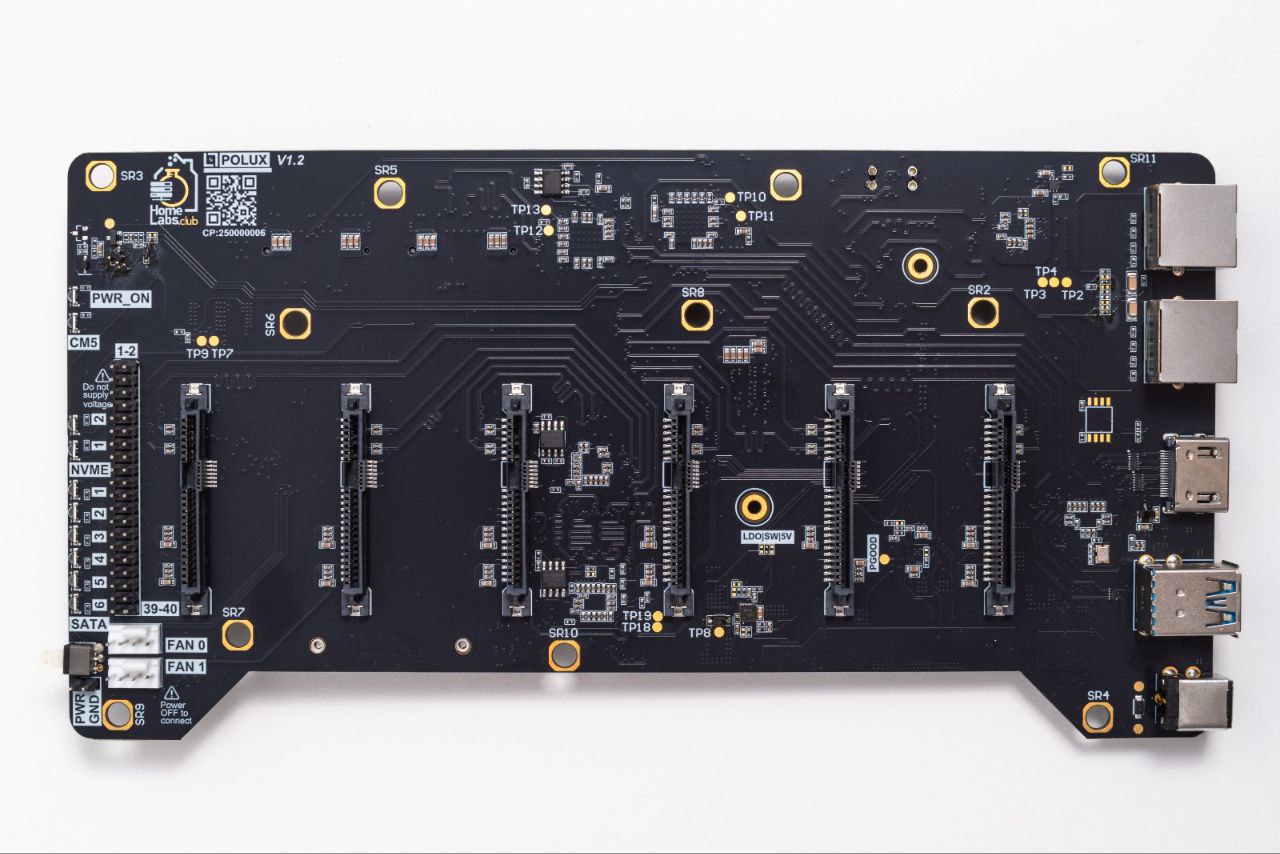

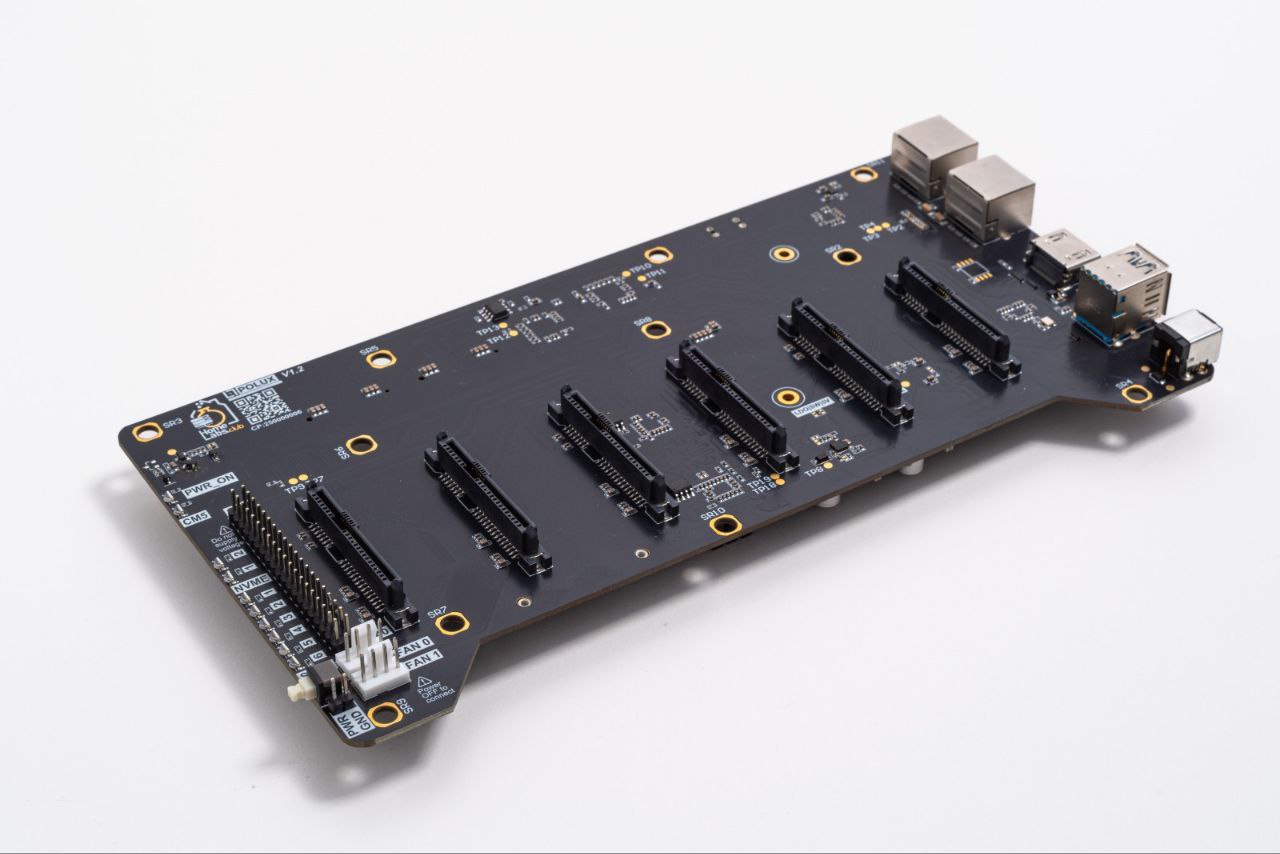

• 6 SATA III ports for 2.5″ and 3.5″ HDD/SSD drives
• 2 M.2 NVMe slots for storage (cache or system)

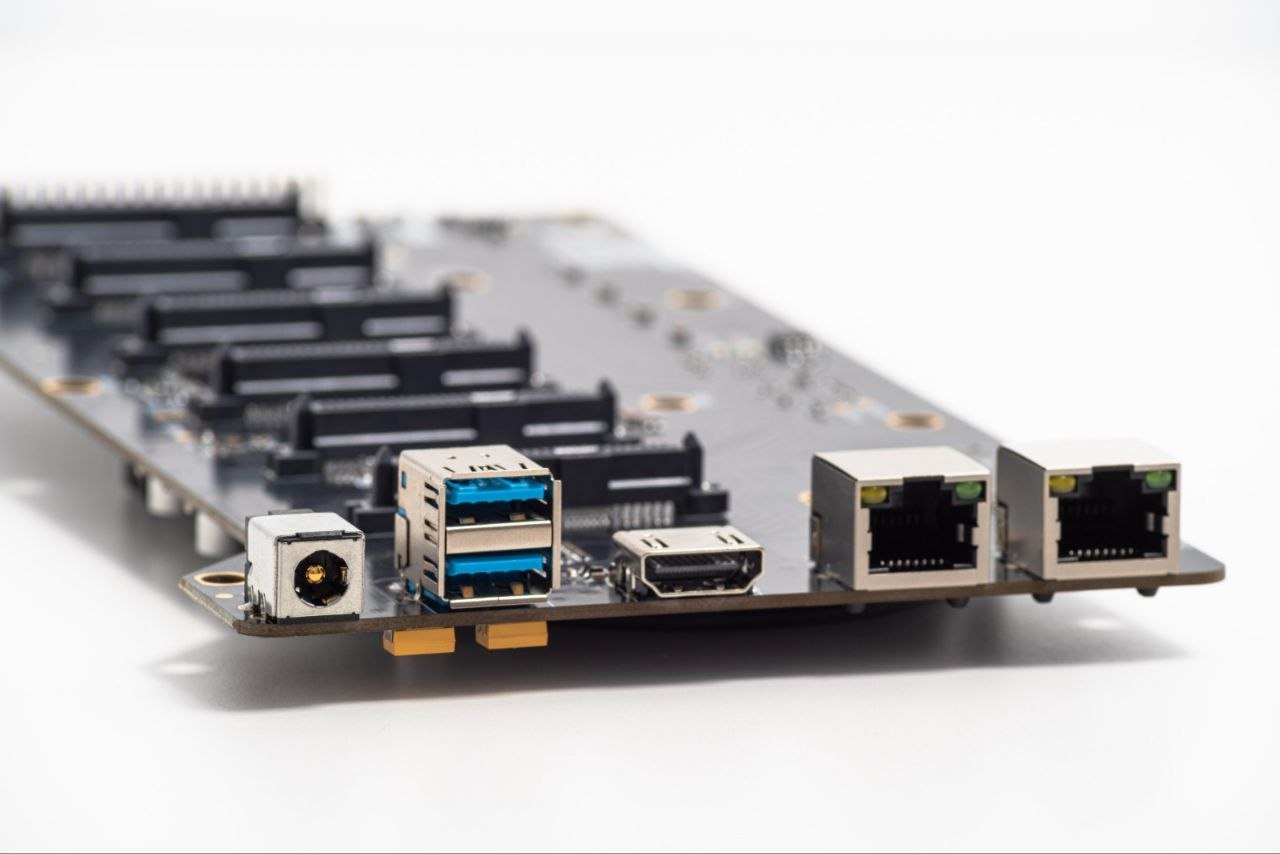

• Dual Ethernet: 1G + 2.5G for maximum network performance
• USB-C for direct flashing with rpi-boot

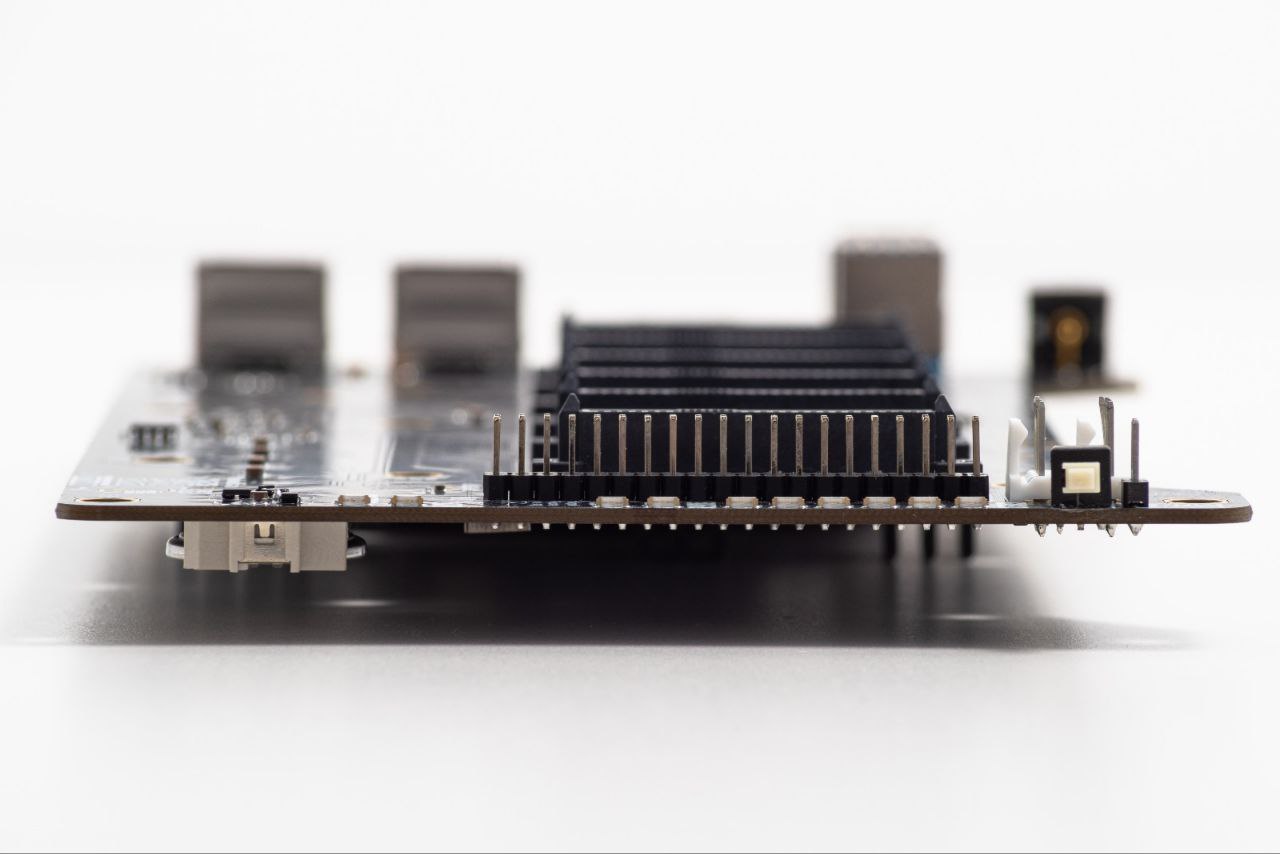

• Complete 40-pin GPIO header
• Integrated power supply for CM5+ drives with reliable power-up
• Compatible with OpenMediaVault, Nextcloud, Jellyfin, Plex, Home Assistant and the entire Raspberry Pi ecosystem
• Scalable from 1 disk up to RAID configurations with 6 drives via software
• Low power consumption less than 15W (without discs)

Technical specifications

• Storage: 6× SATA III + 2× M.2 NVMe
• Red: 1× Gigabit Ethernet + 1× 2.5 Gigabit Ethernet
• USB: 1× USB-C (flash and power)
• Expansion: 40-pin GPIO header
• Power supply: DC input (Maximum 20.5V, Minimum 17V) 5.5mm x 2.5mm connector
• Compatibility: Raspberry Pi Compute Module 5 ECC/LITE
• Typical power consumption: <15W (without discs)
• Supported drives: 2.5″ and 3.5″ SATA HDD/SSD
• MicroSD card slot

What’s included?

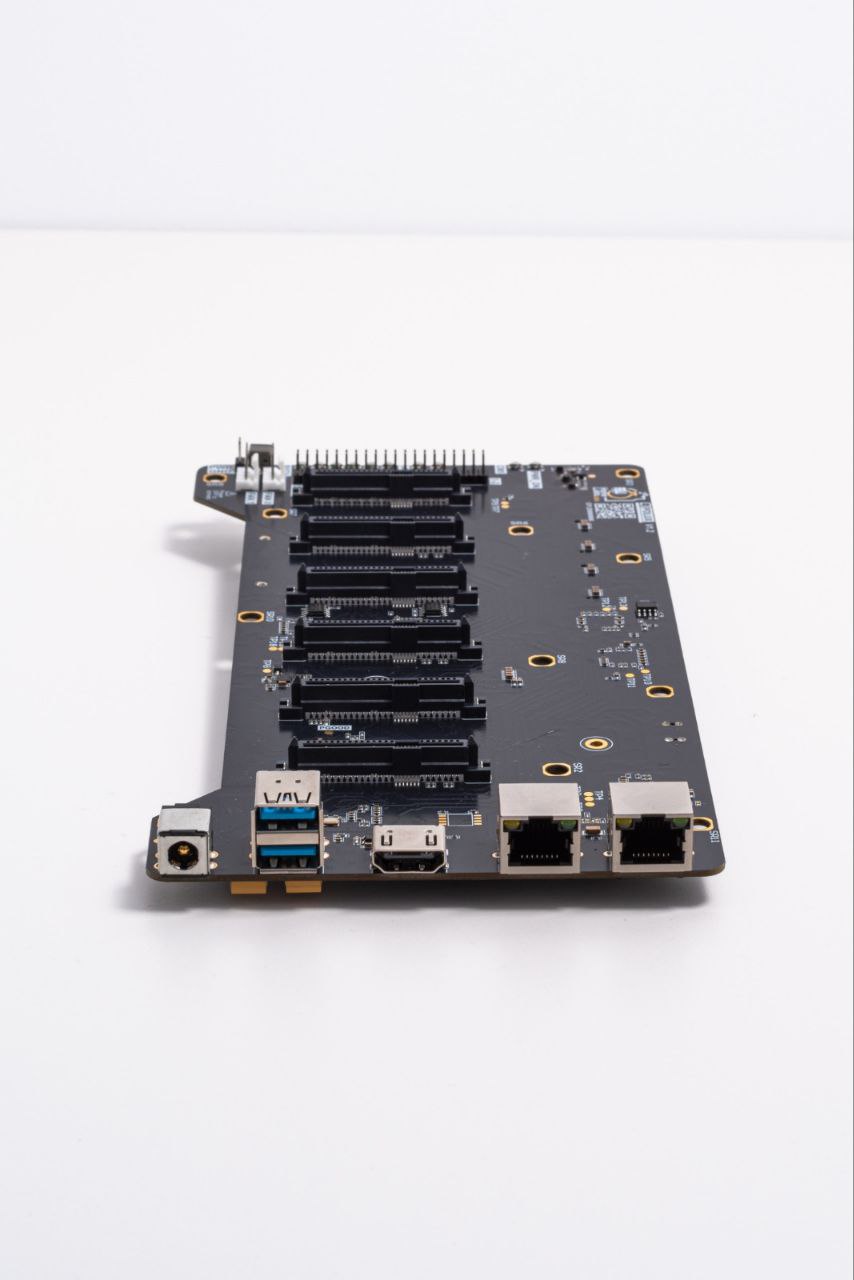

• HomePiNAS base plate
• Wiki with product guide

What else do I need?

• Raspberry Pi Compute Module 5
• HDD/SSD drives according to desired configuration
• Power supply

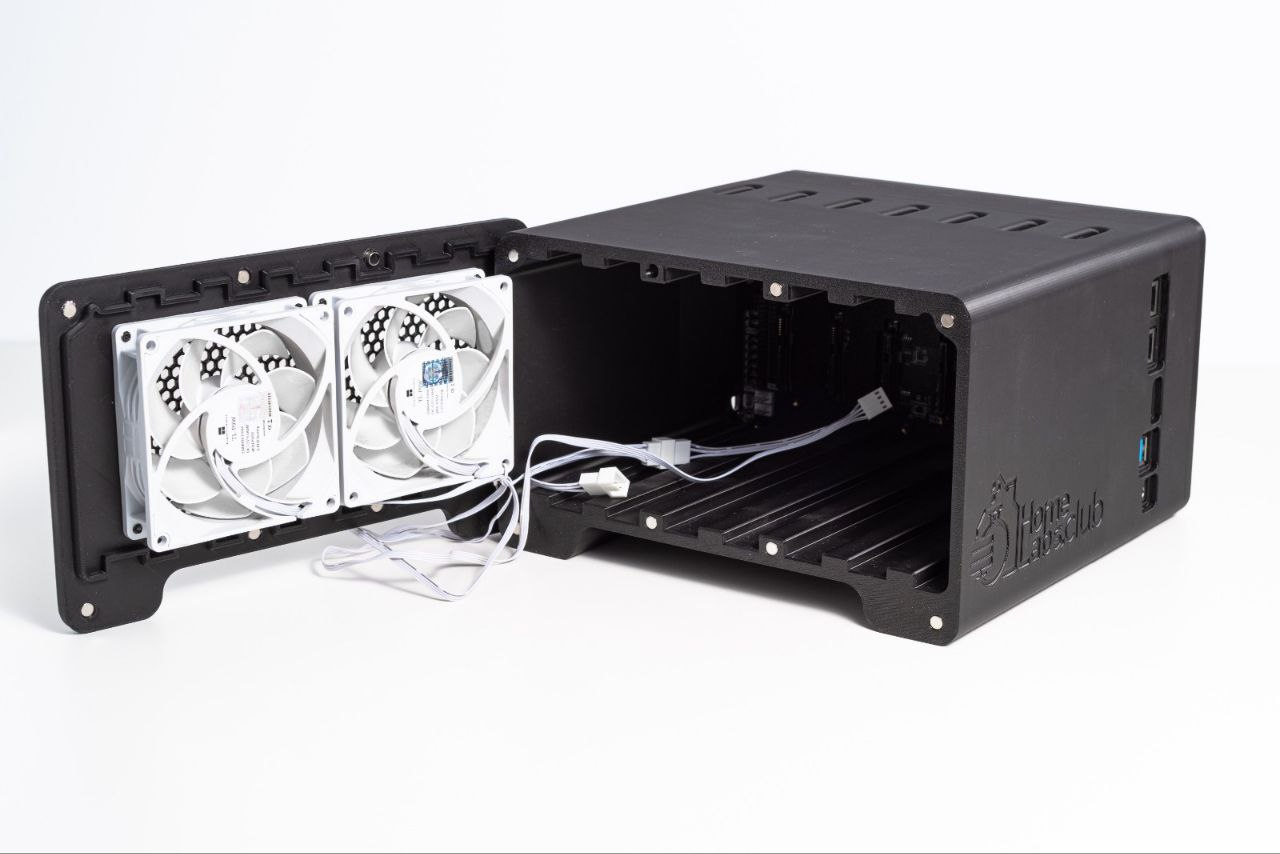

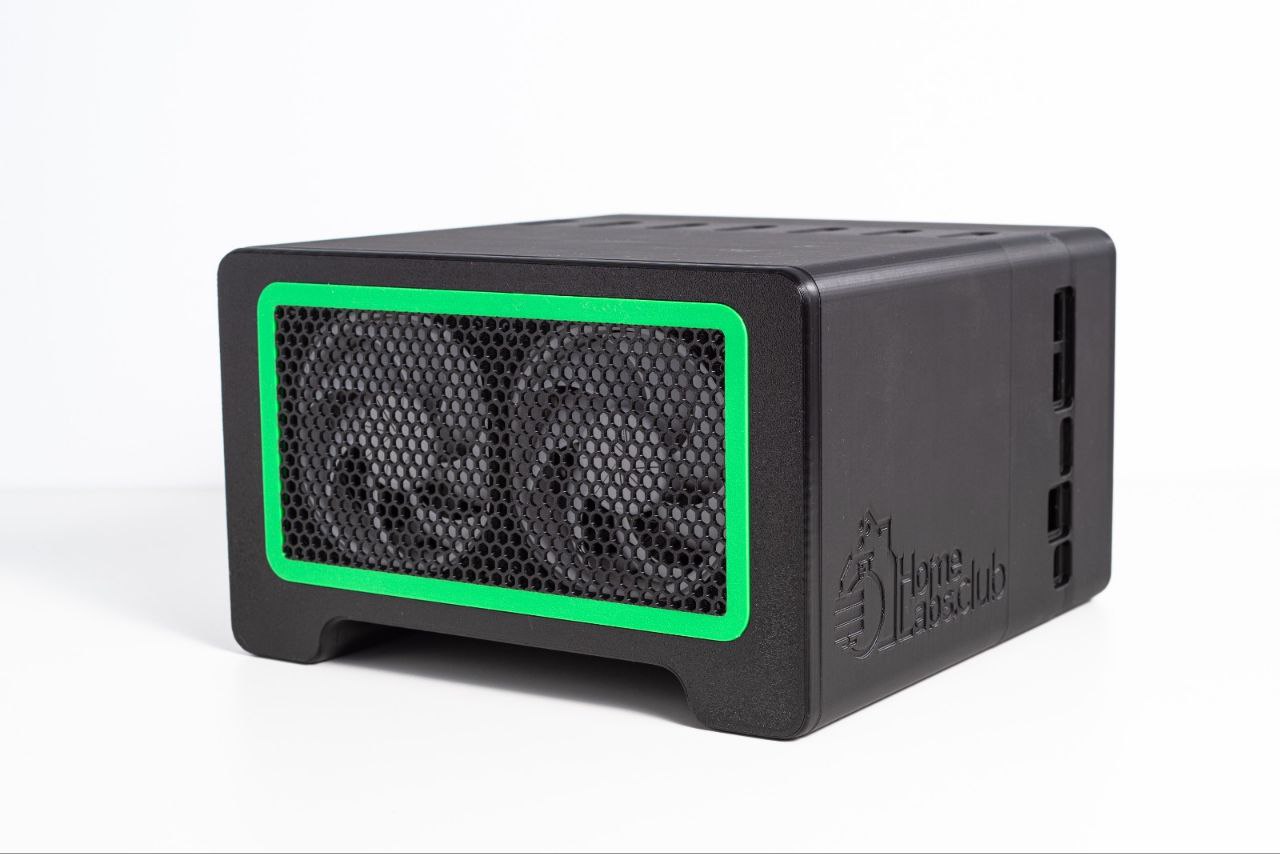

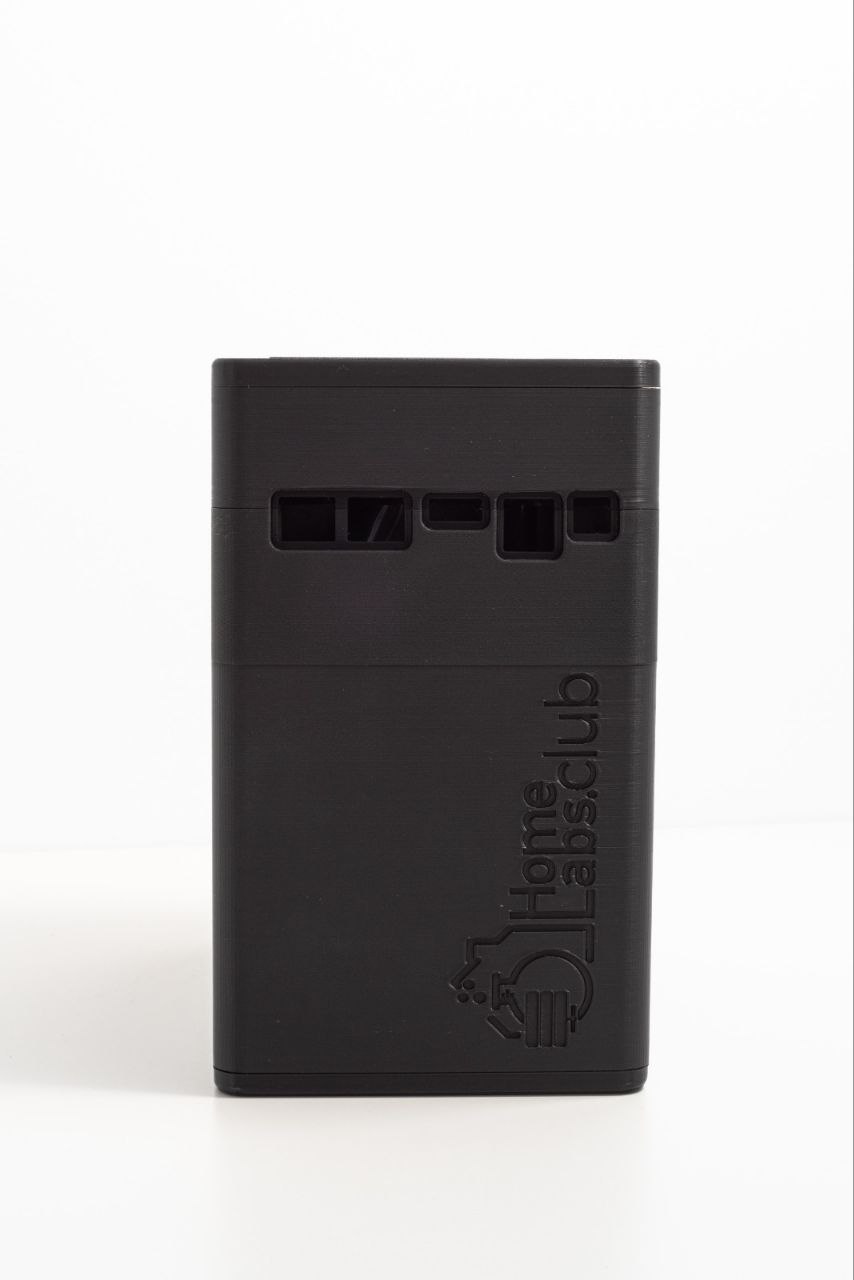

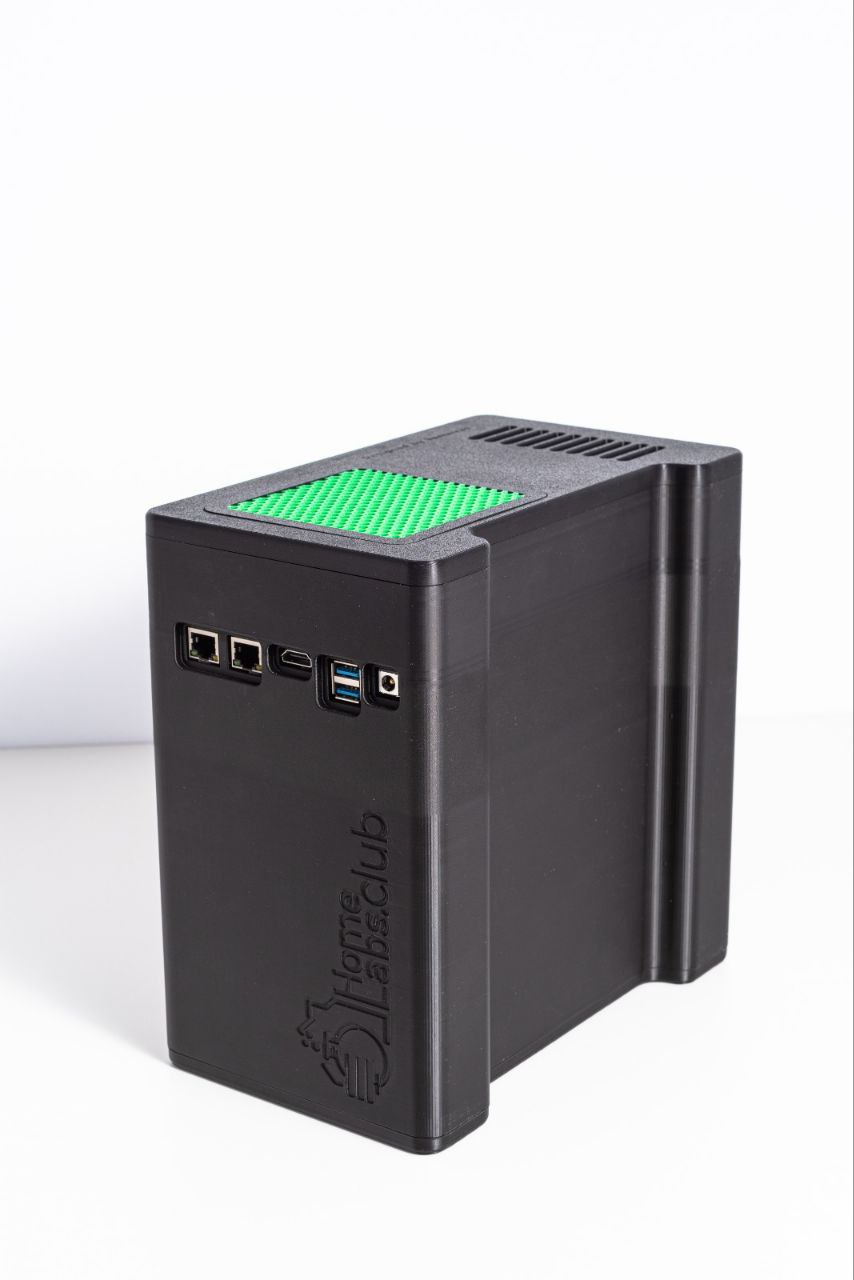

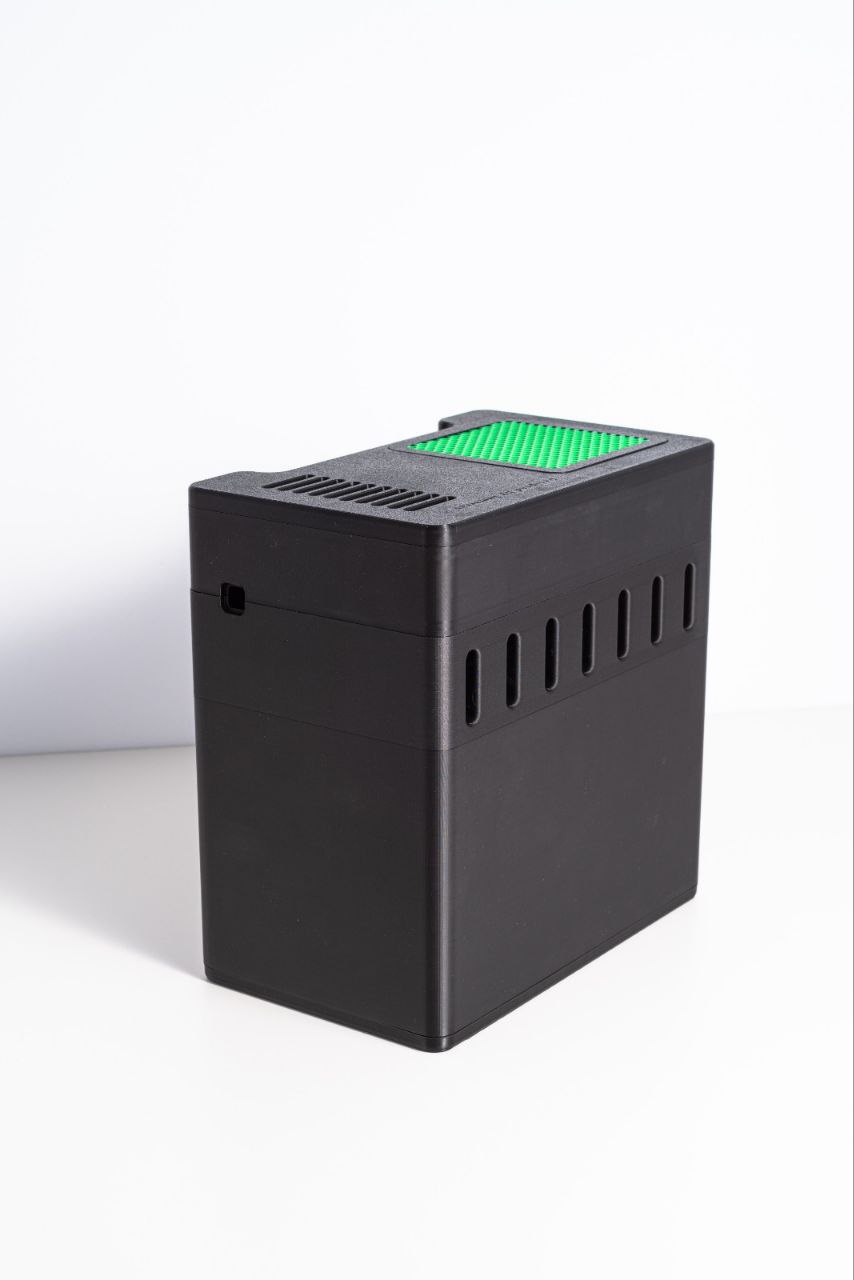

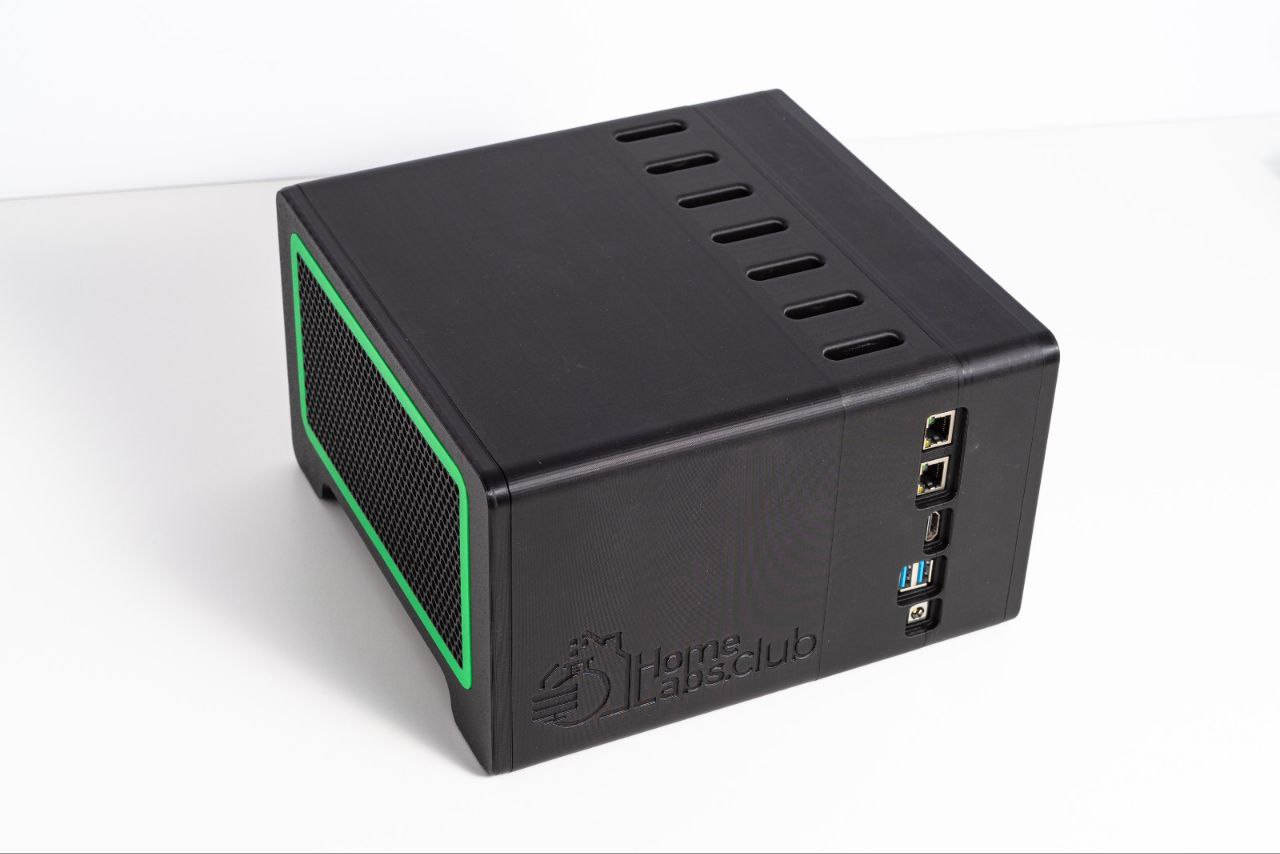

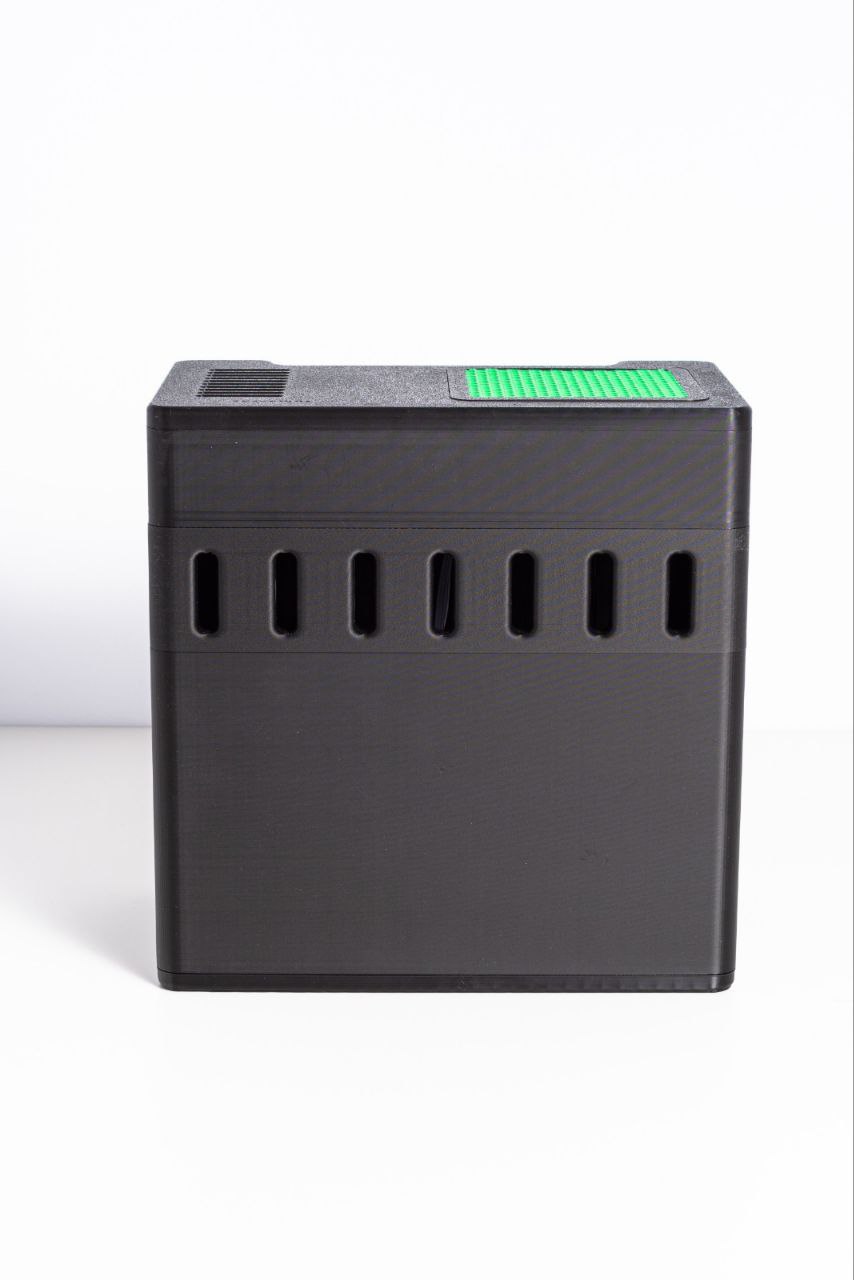

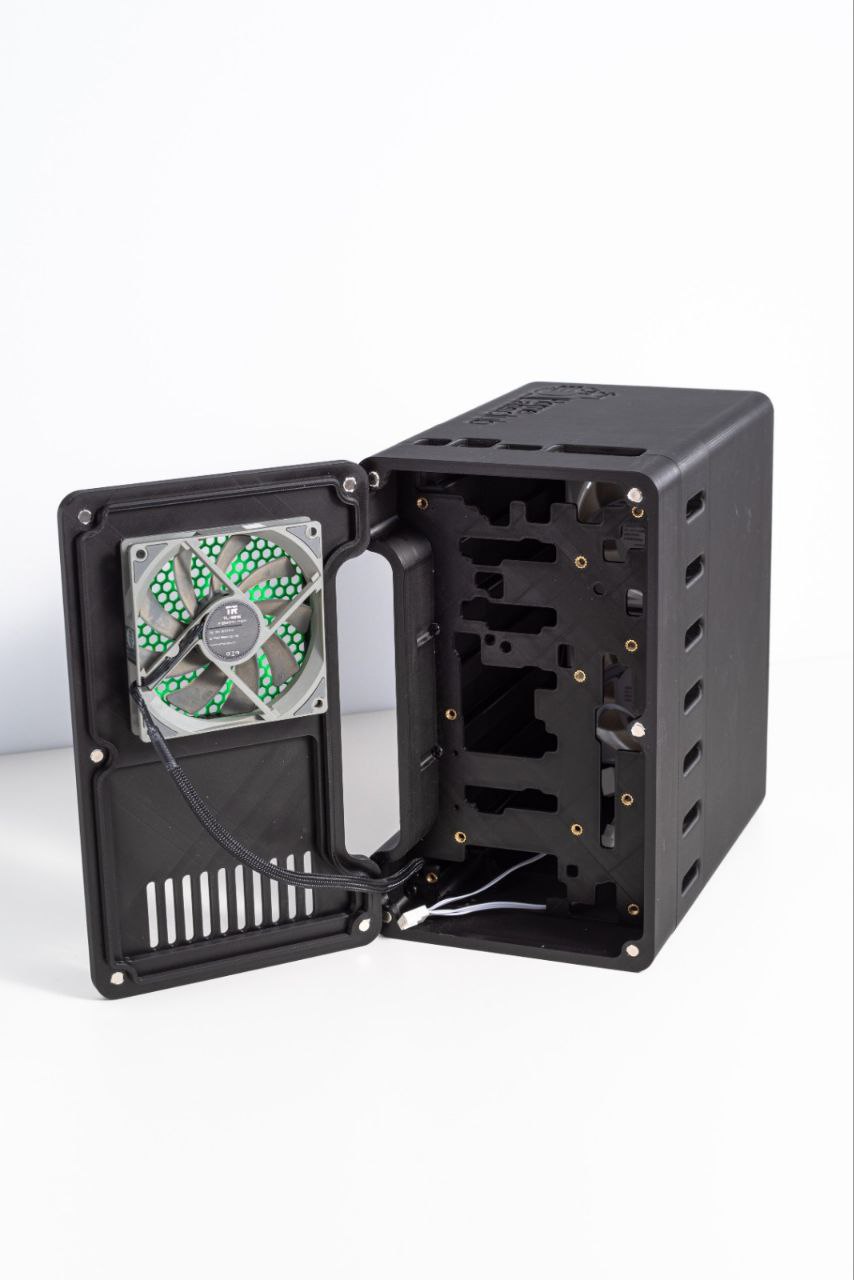

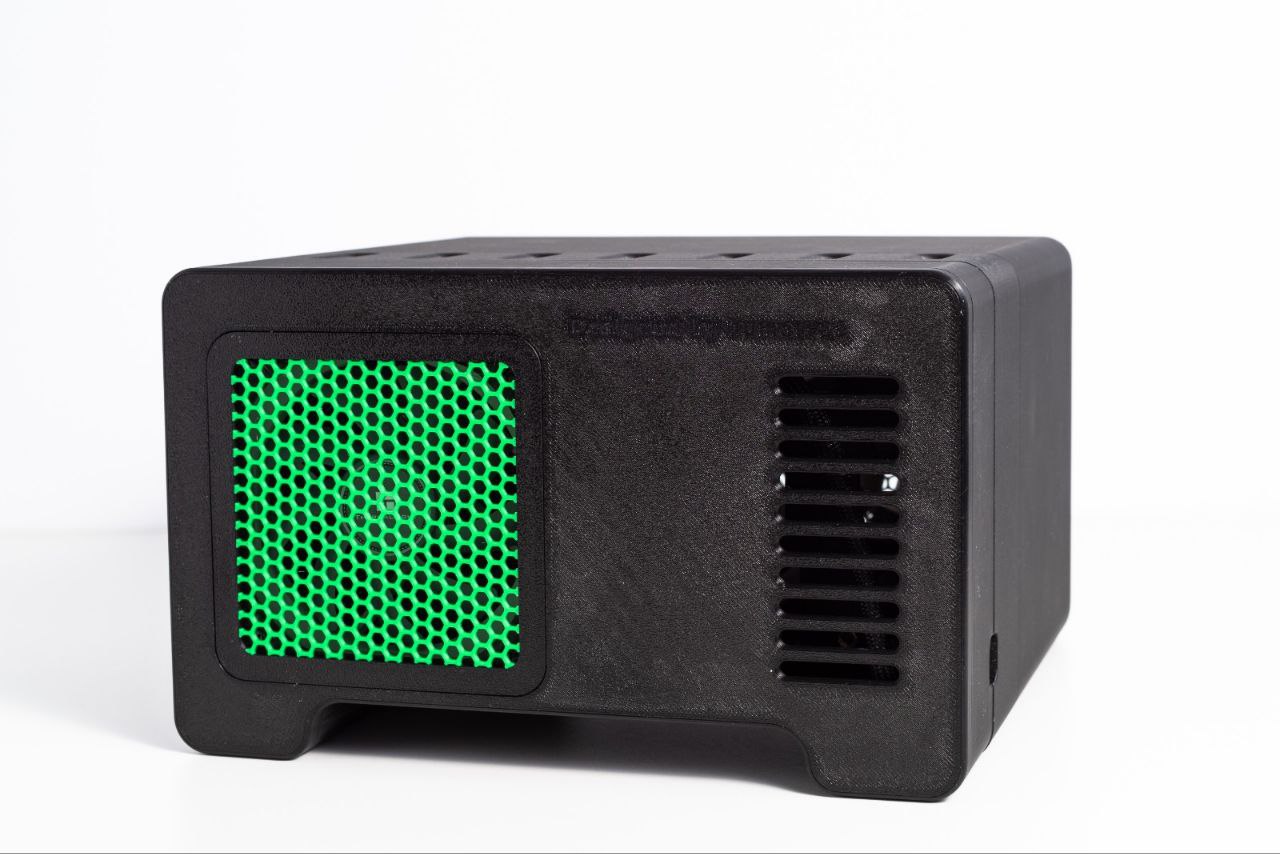

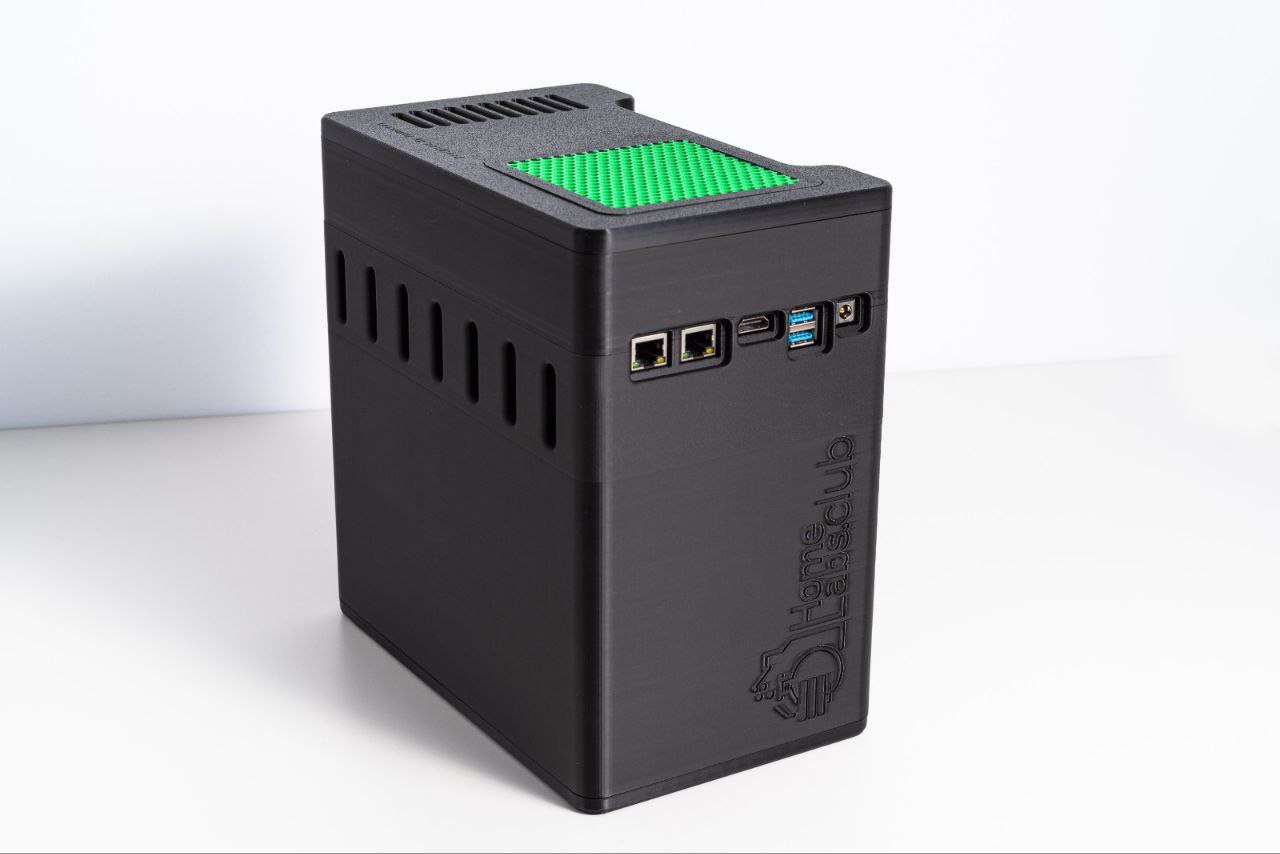

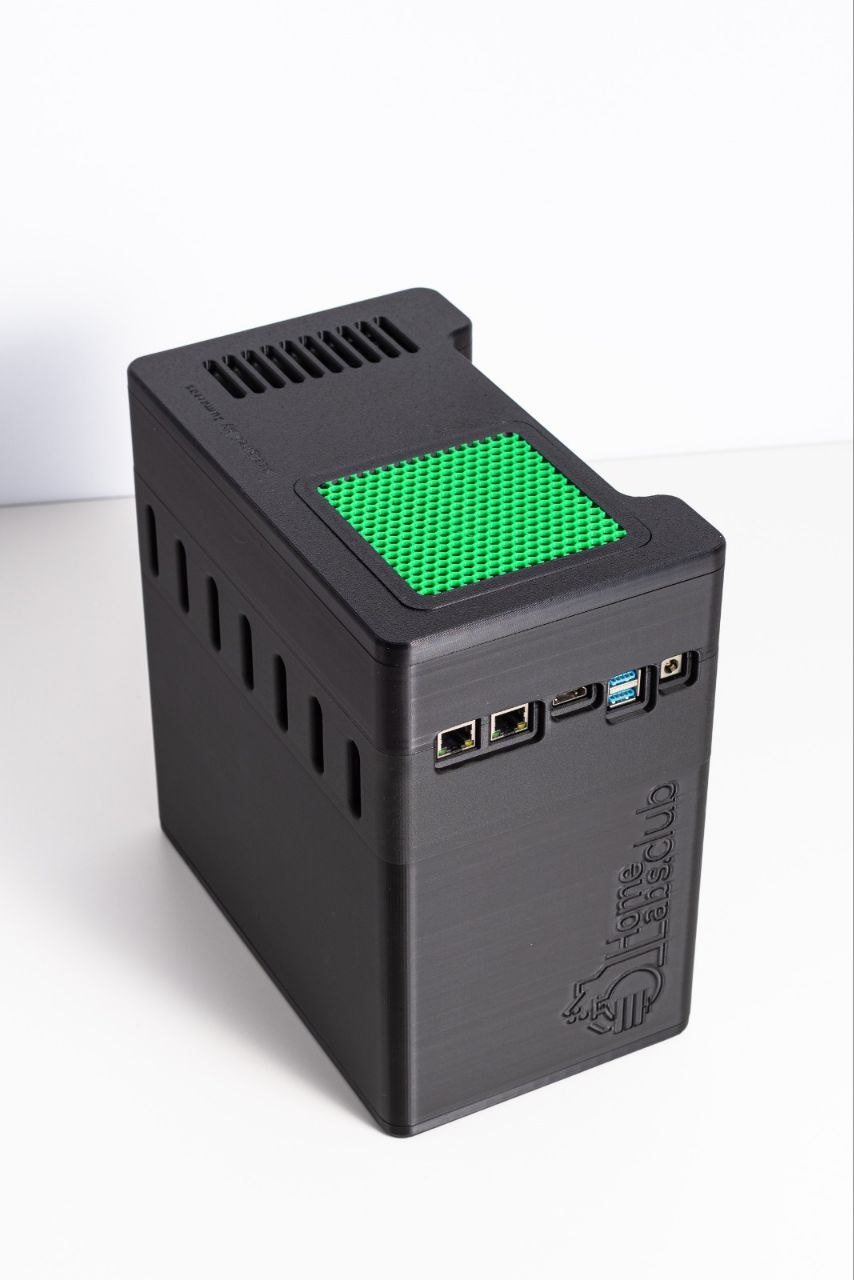

• Box/chassis (optional)
